Have you ever wondered why some gravel bikes feel more comfortable and easier to control than others?
The secret often lies in the bike’s geometry—the unique design and measurements of the frame that influence how the bike handles, feels, and performs on different terrains. Whether you’re cruising down smooth roads or tackling bumpy backcountry trails, gravel bike geometry plays a huge role in your riding experience.
In this article, we’ll dive into what bike geometry really means, how it differs between gravel, road, and mountain bikes, and why understanding these differences matters. Also, we’ll highlight common mistakes riders make when choosing their gravel bike geometry, and why picking the right one can boost your confidence and control on any ride.
Ready? Let’s start rolling.
What Is Bike Geometry?
Bike geometry is the set of measurements and angles that define the shape and size of a bike frame. These numbers dictate how the bike handles, how comfortable it feels, and how efficient it is to ride. Key measurements include the length and angle of the top tube, down tube, head tube, and chainstays, along with the bike’s reach, stack, and wheelbase.
Each of these dimensions affects different aspects of riding. For example, a longer wheelbase generally means more stability at speed, while a shorter chainstay can improve responsiveness and agility. The angles of the head tube and seat tube influence how the bike steers and how your body sits while pedaling. Together, these details create the unique feel of a gravel bike versus a road or mountain bike.

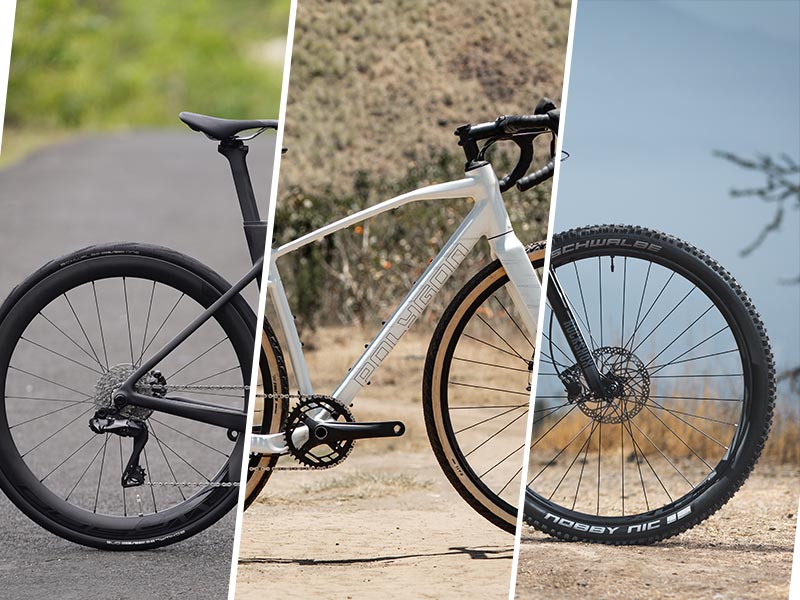

Gravel Bike vs Road vs MTB Geometry: Key Differences
To better understand gravel bike geometry, it helps to see how it compares with road and mountain bike designs. Here’s a quick overview in table form based on typical frame specs:
| Geometry Aspect | Gravel Bike | Road Bike | Mountain Bike (MTB) |
| Top Tube Length | Medium to long for comfort & stability | Shorter, for aggressive posture | Shorter, for maneuverability |
| Down Tube Length | Robust, for stiffness and durability | Slimmer, lightweight | Thick and strong for rough terrain |
| Head Tube Angle | Slacker (~70-72°) for stability | Steeper (~73-75°) for quick handling | Slacker (~65-68°) for control on descents |
| Reach | Moderate, balances comfort & control | Longer, aerodynamic fit | Shorter, more upright position |
| Chainstay Length | Longer (~420-440mm) for stability | Shorter (~405-410mm) for quick response | Short (~420mm) for nimble handling |
| Wheelbase | Longer (1000+ mm) for smooth rides | Shorter (~980-1000mm) for agility | Longer (~1100+ mm) for balance on rough trails |
| Tire Clearance | Wide, supports up to 45-50mm tires | Narrow, fits up to 28mm tires | Very wide, fits 2.1”+ tires |
Why Every Geometry Aspect Matters for Gravel Riding?
Each of these geometry elements is carefully chosen in gravel bikes to create a ride that’s comfortable over long distances yet capable of handling rough surfaces and varied terrain.
- Top Tube & Reach: A medium to long top tube combined with balanced reach allows riders to maintain an efficient but relaxed position, reducing fatigue on long rides.
- Head Tube Angle: The slacker head tube angle slows steering response slightly, providing extra stability and confidence when riding on loose gravel or dirt.
- Chainstay Length: Slightly longer chainstays improve stability, help with weight distribution, and accommodate wider tires, which offer better traction.
- Wheelbase: A longer wheelbase contributes to smoothness and control at speed and over uneven surfaces, so riders feel steady even when the terrain gets tricky.
- Tire Clearance: Gravel bikes need enough space to fit wider tires for cushioning and grip, which is essential when riding off-road or on unpredictable surfaces.
Common Mistakes Beginners Make When Choosing Gravel Bike Geometry
Choosing the right gravel bike geometry can feel overwhelming, especially for beginners. Here are some common mistakes to watch out for:
- Picking a frame that’s too aggressive or too relaxed: Some riders choose a very aggressive geometry aiming for speed but end up uncomfortable on long rides. Others pick overly relaxed frames that feel sluggish or less responsive. Finding the right balance based on your riding style and terrain is crucial.
- Ignoring tire clearance: Gravel riding often means rough, unpredictable surfaces. Selecting a bike without enough tire clearance can limit your ability to use wider tires, which provide better grip and comfort.
- Overlooking fit measurements like reach and stack: These measurements directly impact your riding posture and comfort. A bike that’s too long or too short in reach can cause fatigue or strain, especially on longer rides.
- Focusing solely on aesthetics over function: It’s tempting to choose a bike because it looks great, but geometry and fit should come first to ensure the bike performs well and keeps you comfortable.
Being aware of these pitfalls helps you make a more informed choice and enjoy your gravel adventures with confidence.
Read also
Conclusion
Understanding gravel bike geometry is key to finding a bike that feels just right—offering the perfect balance of comfort, control, and confidence whether you’re cruising paved roads or exploring rugged trails.
The unique combination of frame angles, lengths, and tire clearance makes gravel bikes versatile and capable, designed to tackle a wide range of terrains without sacrificing ride quality.
By paying attention to geometry details like reach, head tube angle, and wheelbase, you can choose a gravel bike that matches your riding style and the type of terrain you want to conquer. This knowledge helps avoid common pitfalls and ensures your bike performs optimally, letting you enjoy every ride with greater ease and safety.
